PRY-1650C BOPP PET Nylon CPP CPE Aluminum Foil Automatic Film Laminating Machine

Name: PRY1650C BOPP PET Nylon CPP CPE Aluminum Foil Automatic Film Laminating Machine
Brand: PRINTYOUNG
Price: 60000 USD

Brand Name : PRINTYOUNG

Model Number : PRY-1650C

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 60000 Set

Payment Terms : L/C, T/T

Supply Ability : 10 Set/Sets per Year

Delivery Time : 60 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Effective Laminating Width : 1650 mm

Max Width of Base Material : 1600 mm

Max Machine Speed : 150 m/min

Max Diameter of Primary Unwinding : Ф 1400 mm

Max Diameter of Secondary Unwinding : Ф 600 mm

Max Diameter of Rewinding : Ф 1500 mm

Inside Diameter of Roll Core of Base Material : Ф 76 mm

Layer Quantity of Laminating : Two Layer (for one pass)

Control Range of Tension : 3 ~ 30 kg (Preset)

Precise of Tension Control : ± 0.5 kg

Heating Power of Oven : 80 kw

Total Power for Whole Machine : 120 kw

Weight of Machine : 10000 kg

Overall Dimension : 11600 * 3800 * 3800 mm

Contact Now

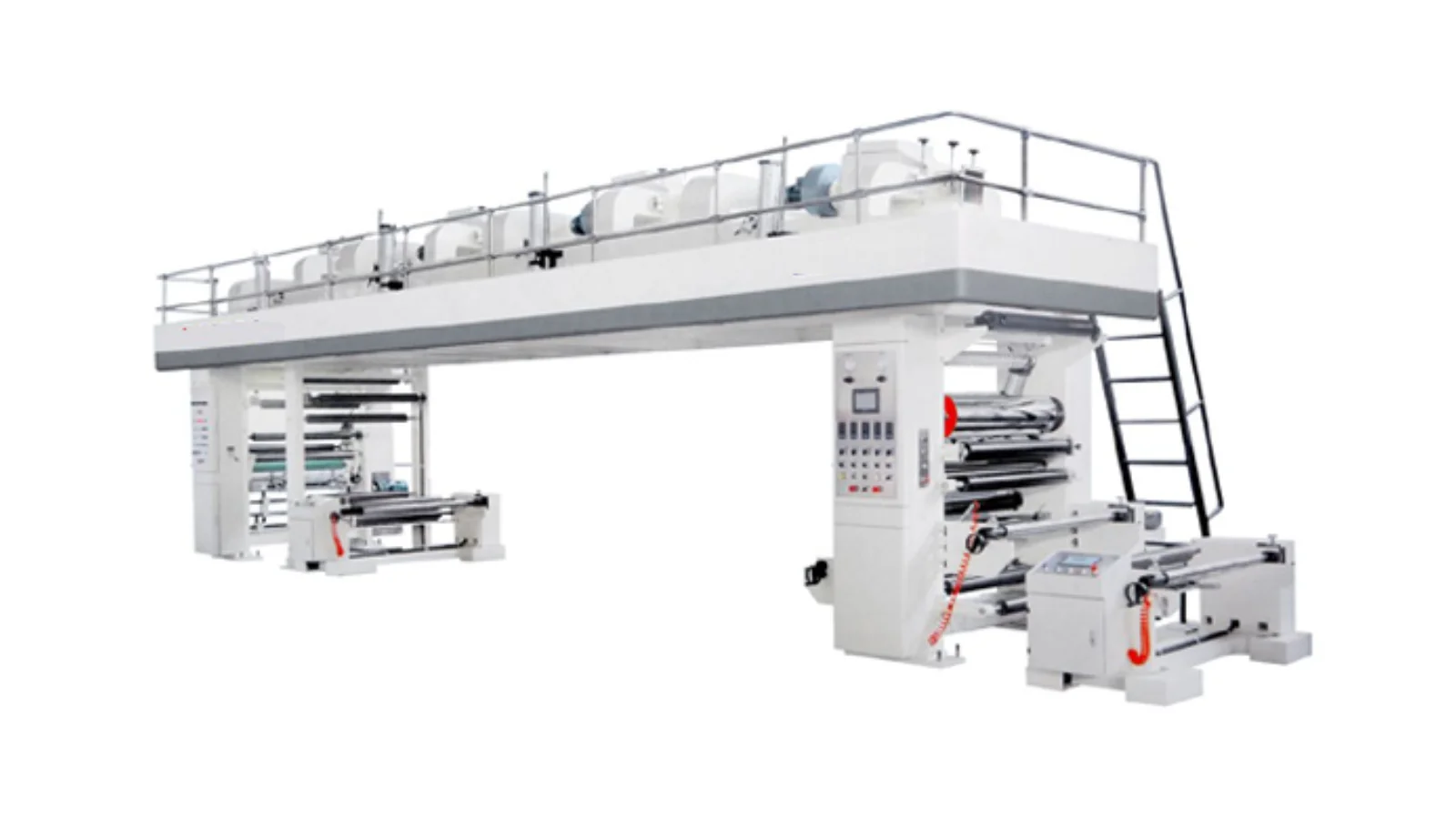

PRY-1650C Automatic Film Laminating Machine

PRY-1650C BOPP PET Nylon CPP CPE Aluminum Foil Automatic Film Laminating Machine

Technical Parameters

PRY-1650C Automatic Film Laminating Machine
Model	PRY-1650C (3 Vector Motor)
Effective Laminating Width	1650 mm
Max Width of Base Material	1600 mm
Max Machine Speed	150 m/min
Max Diameter of Primary Unwinding	Ф 1400 mm
Max Diameter of Secondary Unwinding	Ф 600 mm
Max Diameter of Rewinding	Ф 1500 mm
Inside Diameter of Roll Core of Base Material	Ф 76 mm
Layer Quantity of Laminating	Two Layer (for one pass)
Control Range of Tension	3 ~ 30 kg (Preset)
Precise of Tension Control	± 0.5 kg
Heating Power of Oven	80 kw
Total Power for Whole Machine	120 kw
Weight of Machine	10000 kg
Overall Dimension	11600 * 3800 * 3800 mm

Configuration

Unwind Unit

Unwinding section is consisted of primary unwinding and secondary unwinding.Both equipped with automatic splicing,initiative unwinding system and LPC.

Structure
*Single station unwinding.
*Base frame for fixation and transverse dancing structure.
*Automatic magnetic powder tension detecting and controlling.

100N 2pcs Tension range 3-30kg.
*Base material rolls loaded on air shaft,the air shaft is held on ball bearing support.
*The new base material roll can be driven automatically to reach the same rotation speed of main machine.

Specification
Diameter of unwinding roll on primary station of the double arm turret:Φ1400mm
Diameter of unwinding roll on secondary station of the double arm turret:Φ600mm
Torque:100N.m
Precision of tension control:±0.5kg
Adjust range for material rolls in landscape orientation by manual:±20mm
Automatic control LPC Photoelectricity
Air shafts for primary/secondary and rewinder with the machine additional
Primary unwinder:76mm Diameter
Material loading and unloading trolley:one unit with the machine

Coating Section

Structure
*Coating method availabilities as follows:gravure coating.
*Press roller:shaft through type with quick replacement utility.
*Doctor blade:pneumatic pressure,clutch,three-position adjustment utility.
*Independent drive motor for coating roller.
*Single side adjust material feeding adjust roller.
*Special industrial glue pump.
Specification
Length of coating roller:1650mm
Diameter of coating roller:Φ196mm
Mesh number of coating roller:150 line
Press roller:Φ120MM

rigidity:65-70(Shore A)
Doctor Blade dancing range:±5MM
Drive motor:AC control system
Features
*Ration glue transfer,anilox glue coating.
*Pneumatic press roller,adjustable pressure, smooth glue transfer.
*Three position scraper knife,ensure the best doctor blade angle.
*Independent drive control,high tension control precision.
*Integer rigid design for glue coating roller,has the function of quick replacement.
*Oscillating arm drive press roller,quick separating and touching.
*Transportable glue tank can ascend and descend,for the sake of operating convenience.

Drying Section(Oven Section)

Structure
*Entirely sealing up and down double body drying oven
*3 temperature section with automatic temperature controlling,independent heat origin for each temperature section.
*Independent design for pre-positive suction air cap,equipped with sight window.
*Oven with hot air recycling system.
*Flat long hot air nozzle.
*Electric heating generator.
*Pneumatic ascend open,easy for film go through,oven covers to be fixed with pneumatic cylinders for opening and closing
*Big arc layout for guide roller
*Oven Rollers to be driven by a motor
*Temperature controller with digital indicator on each drying oven.
Specification
Max. oven temperature:100℃
(Maximum drying temperature in an oven can reach 800℃)
Material length in drying section:9000mm
Rate of recycled hot air(utilization factor of recycled hot air):0-30%
Precision of temperature control:±2℃
Max. hot air volume:3000M/〈×3〉
Power of fans:2.2KW×3
Features
*Utilization of recycled hot air for energy saving
*Negative pressure design for the whole drying section ensures no hot air leakage from the oven section.
*Three temperature sections,automatic constant temperature control ensures the volatilization of solvent.
●Prepositional air suction cap will exhaust the preliminary solvent volatilization,the waster air will not take part in the recycling of the hot air,ensure the safety.

Laminating Section

Structure
*Double rollers structure, counter pressure type
*Thermal type nip roller
*Independent drive and transmission system
*Hot oil heat the laminating roller
*Closed loop tension control system
*Pneumatic pressure adding with clutch utility
*Independent heat generating system with heat recycling utility for hot oil
Specification
Diameter of Laminating roller(Thermal Nip Roller):Φ260mm
Diameter of Press Rubber Roller:Φ200MM Hardness 75Shore A
Max temperature of laminating roller(Thermal Nip Roller):100℃
Drive motor:AC Frequency Converter Control system
Features
*Uniform pressure laminating
*Independent drive and closed loop tension control ensure the same tension of different base material hence ensure the final product rolls’ laminating quality.
*Adjustable pneumatic clutch system,quick engages and disengages.
*Installed with Pneumatic Jacks with pressure regulators and indicators.
*Because introduce independent drive system for laminating section,the tension of material in drying section can keep in low level hence the material shall not be elongated.
*The temperature of heating roller is controlled by heating recycling system for precise and reliable temperature control.

Rewinding Section

Structure
*Single station rewinding
*Introduce dancing roller control system
*Closed loop tension control system
*Rewinding rolls loaded on air shaft, the inflatable loaded on ball bearing support
*Automatic and independent drive system,keep same pace with main machine
*Pneumatic press shaft for rewinding
Specification
Diameter of rewinding roll:1500mm
Driven by one motor equipped with speed regulation system
Precision of tension control:±0.5kg
Adjust range for rewinding rolls in landscape orientation:±20mm
Attenuation rate of tension:0-100%
Features
*Air shaft for rewinding rolls loading,easy and quick rewinding rolls replacement,uniform support force,precise centre location.
*No speed difference when replace rewinding rolls,low waster rate.
*Initial diameter of attenuation rate and attenuation rate itself can be set freely
*Pneumatic press shaft for rewinding rolls ensures the trimness of the rewinding roll’s edge

Tension Control System

*Tension of the whole machine controlled,dancing roller tension detective,PLC control system.
*High precision tension control ensures stability of tension even when speed changed during operating.

Static Remove System

Automatic static eliminator.

Applications

This machine suitable for the double layers or multi layers lamination of such roll film materials as BOPP,PET,Nylon,CPP,CPE,aluminum foil.The film laminated by this machine can be used for package materials with high requirements on strength,fresh-keep and cooking bag.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.
